Aquatica Fusion Lineare HydroRelax Jetted Outdoor/Indoor Bathtub (US version 240V/60Hz)

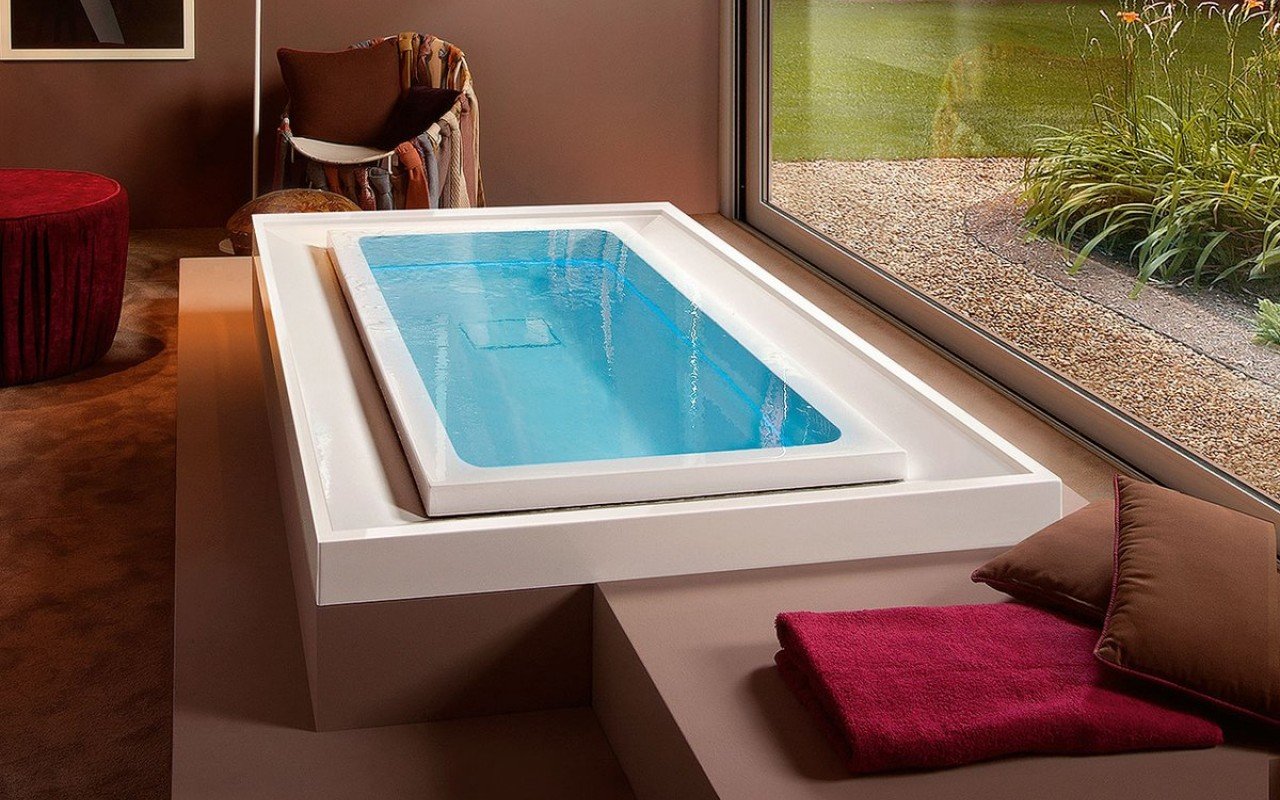

Fusion Lineare outdoor hydromassage bathtub 01 (web)

Fusion is an innovative new world-class hydromassage bathtub series designed by renowned international designer Marc Saddler, manufactured by Gruppo Treesse in EU and adapted to US electrical and plumbing standards by Aquatica Plumbing Group Inc. Aquatica is proud to be the exclusive US distributor of this innovative HydroRelax bath series. Among the unique characteristics of the Fusion bathtub and HydroRelax series is the distinctive, overflowing Infinity style rim, creating a seemingly edgeless water surface, as well as the concealed therapy system, which is installed inside a thin cavity located in the inner perimeter of the bathtub. Innovative and truly distinctive design Concealed hydromassage system – unmatched in the market Air-assist hydromassage system for more pleasurable massage effect Underwater chromotherapy lighting with various lighting shows Independently Operating Water heating with temperature control Suitable for indoor and outdoor use Designed for comfortable two person bathing 1 x 3kW heater 240V 60Hz power with 20A GFCI Protected 10 year limited warranty on the bathtub shell 2 year limited warranty for all electrical components and other parts, except drains 2 year overall limited whirlpool system warranty

Aquatica

CAD 19362.93 https://www.aquaticabath.ca/products/627722004880-aquatica-fusion-lineare-spa-jetted-outdoorindoor-bathtub-us-version-240v60hz 2030-01-01

Fusion 627722004880 Fusion-Lineare-SpaBath

5 5 1 1

Aquatica

Aquatica Plumbing Group 2019-08-01

1 5 5

Aquatica Fusion Lineare HydroRelax Jetted Outdoor/Indoor Bathtub (US version 240V/60Hz) - the best choice I have ever made.

Aquatica Fusion Lineare HydroRelax Jetted Outdoor/Indoor Bathtub (US version 240V/60Hz)

CAD $19,363

Aquatica Fusion Lineare HydroRelax Jetted Outdoor/Indoor Bathtub (US version 240V/60Hz)

Review this item

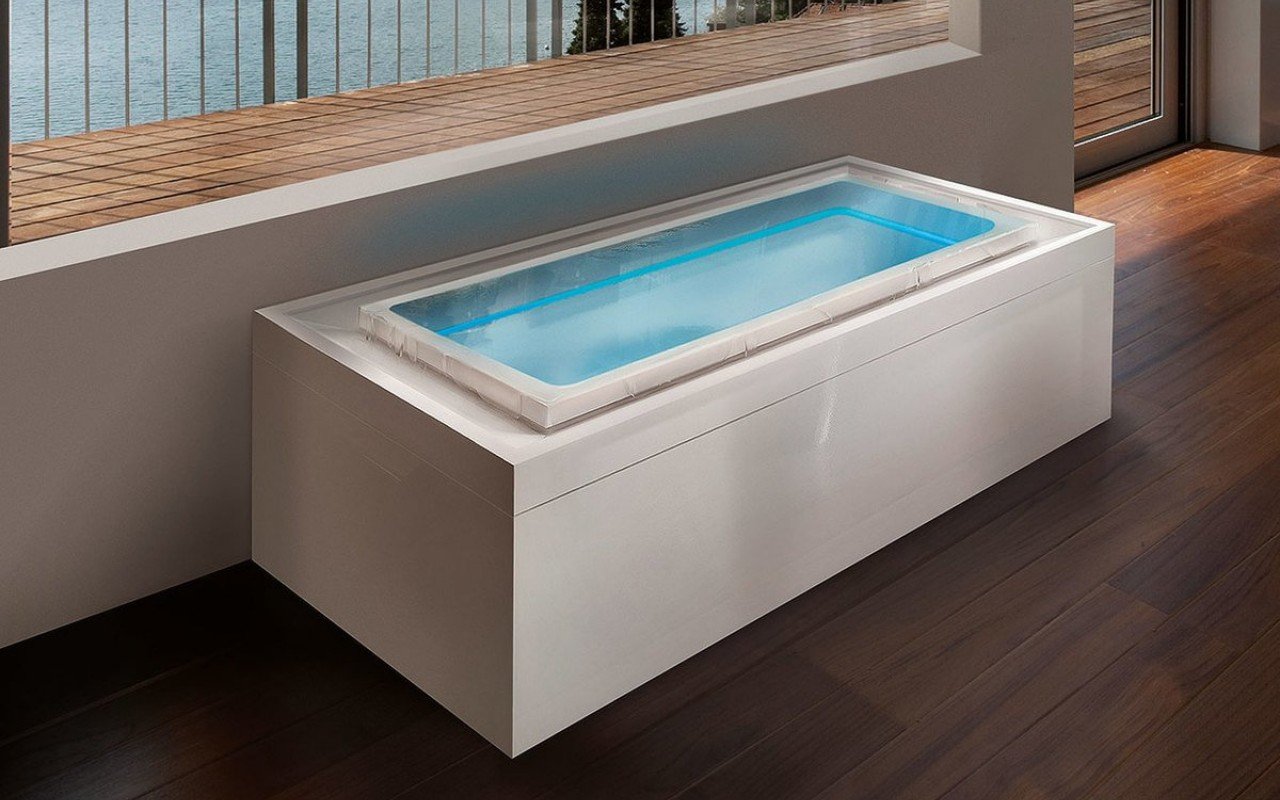

Fusion Lineare outdoor hydromassage bathtub 03 (web)

3D Body Position

Documentation

Key Features

Unique Design

Can Be Customized

Suitable for Outdoors

Heated

Air Massage

Turbo Pro Massage

LED Lights

Capacitive Keypad

Product Details

General parameters

Exterior dimensions (in)	86.5 L x 47.25 W x 26.25 H
Depth to overflow drain (in)	17.75
Product weight (lb)	331
Water capacity (gallons)	135
Shape	Rectangular
Product material	DurateX™
Installation type	Built in
Warranty	10 Year Limited Warranty on the bathtub shell

Other parameters

Collection name	Fusion
SKU	Fusion-Lineare-SpaBath
Country where manufactured	EU
Product color	White
Surface finish	High Gloss
Drain placement	Center
Assembly required	No
Type of Massage	Hydromassage

Interior parameters

Interior depth (in)	17.75
Interior length top (in)	66.25
Interior width bottom (in)	26.75
Interior width top (in)	26.75

Package parameters

Shipping weight (lb)	496
Number of boxes	1

Electrical power requirements

Electrical standards	240V/60Hz
Required electrical voltage	240V/60Hz
Electrical circuit breakers	20A GFCI Protected
Circuits required	1 Single Circuit

Installed equipment

Hydrotherapy pumps	1
Circulation pump	Yes
Heater	Yes
Bluetooth audio system	No
Stereo speakers	No
Subwoofer	No

Show more View documentation

Shipping Information

Lead Time

Special order

Shipping Cost

CAD $899

Return

30 days

Fusion is an innovative new world-class hydromassage bathtub series designed by renowned international designer Marc Saddler, manufactured by Gruppo Treesse in EU and adapted to US electrical and plumbing standards by Aquatica Plumbing Group Inc. Aquatica is proud to be the exclusive US distributor of this innovative HydroRelax bath series.

Among the unique characteristics of the Fusion bathtub and HydroRelax series is the distinctive, overflowing Infinity style rim, creating a seemingly edgeless water surface, as well as the concealed therapy system, which is installed inside a thin cavity located in the inner perimeter of the bathtub.

Innovative and truly distinctive design
Concealed hydromassage system – unmatched in the market
Air-assist hydromassage system for more pleasurable massage effect
Underwater chromotherapy lighting with various lighting shows
Independently Operating Water heating with temperature control
Suitable for indoor and outdoor use
Designed for comfortable two person bathing
1 x 3kW heater
240V 60Hz power with 20A GFCI Protected
10 year limited warranty on the bathtub shell
2 year limited warranty for all electrical components and other parts, except drains
2 year overall limited whirlpool system warranty

Innovative and truly distinctive design

All the Fusion hardware is concealed. There are no visible faucets while the drain outlet and overflow is designed without any intrusive holes on the tub’s inner surface.

Unique infinity style overflow system

The Fusion hydrorelax bathtubs and spas have been designed to overflow continuousely while heating the water in the process and create tranquile-relaxing atmosphere enhanced by unique light therapy shows.

Air-assist hydromassage system

Air is injected into the hydro massage system to achieve a more pleasurable massage effect.

Relaxing, soul and mind smoothing chromotherapy

Light shines from all around the bath perimeter - this creates a blade of light that “magically” animates the water swirl from the hidden nozzles. The concealed underwater chromotherapy system is designed to provide an unparalleled light therapy effect.

Temperature control and recirculation

The Fusion line hydrorelax bathtubs and spas feature advanced bath controller with water recirculation, temperature control and modern capacitive glass keypad.

Aquatica Fusion Rondo HydroRelax Jetted OutdoorIndoor Bathtub US version 240V 60Hz 05 (web)

Suitable for indoor and outdoor use

The advanced composite material from which the Fusion line is made, allows for both indoor and outdoor use under any climate.

Suitable for residential and light commercial use

The Fusion bathtubs can be equipped for a bathtub application (our default configuration) or alternatively, could be supplied with advanced spa pack for light commercial or outdoor spa (hot tub) application where emptying the bathtub after every use is not practical. In addition to all bathtub features, the spa configuration includes sand filter and UV-C dissinfection system.

Optional Integrated Bluetooth Audio

Designed to deliver clean, crisp, rich sound in the high-fidelity rendition expected by music lovers, Aquatica Audio Station features Class D amplifier technology to enhance your bathroom audio experience. Delivering 300W peak at low distortion, our audio station features high-quality audio transducers and a built-in subwoofer with integrated digital filter and adjustable volume.

Powerful high quality subwoofer

With a 6-inch, high power cylindrical subwoofer, Fusion hydrorelax bathtubs and spas provide you with that missing low-end in your favorite tracks that you cannot get from various mobile Bluetooth speakers so often used in bathrooms.

Dual action water sanitization system

Our Fusion hydrorelax bathtubs and spas are equipped with a unique dual ozone and UV-C water sanitizing system in one compact and simple system. When used in a spa application, this innovative solution significantly reduces residual chlorine or bromine consumption and delivers a healthier and more enjoyable spa experience.

Dual water sanitization system 200x200 (web)

Minimalistic & trully invisible hydromassage system that no competition can match

Tired of seeing ugly jets sticking out of bath surface? The Fusion bathtub’s hydromassage micro jets are made of stainless steel and installed along the inner perimeter of a thin inside cavity – a truly distinctive and very innovative design feature of the Infinity bathtub line.

Minimalistic and trully invisible hydromassage system that no competition can (web)

Electronic draining and filling

Exclusive to our bathtubs – Fusion hydrorelax bathtubs and spas are equipped with three 2” state-of-the-art high-throughput electronic draining valves that ensure fast draining of the bathtub and compensation tanks. Activate fast draining by simply pressing a single button. Similarly – initiate the bathtub filling via the jets by a simple single button press.

Sustaining and energizing chromotherapy effect

Chromotherapy is thought to balance and harmonize energy in the body through the use of light in the form of color. Each color has a role in this process, working on different organs of the body and spiritual functions, which correlates to the East Indian concept of the seven major energy centers or chakras. The Fusion’s chromotherapy color palate includes all seven rainbow hues - red, orange and yellow to green, blue, indigo, violet and white, which gently and continuously rotate through their spectrum for a sustaining and energizing effect on the whole body.

Fusion HydroRelax Jetted Outdoor Indoor Bathtub Chromotherapy (web)

Virtual Bathtub-Seater

3d Body Position App

Experience our sophisticated, functional, and convenient 3D Body Position App! It will allow you to create a personalized avatar to test our bathtubs and spas for seating comfort. Enter your gender, body type, weight, and other personal body parameters to test our products, and choose the most optimal model for your needs. The "Fill Water" function allows you to see the depth of the bathwater in relation to your body. You can even create several avatars for different people simultaneously. That way you can try a bathtub not only for yourself but also for your spouse, partner, friend or children.

Fusion Lineare Bathtub and Spa 3D Body Position

Product Details

General parameters

Exterior dimensions (in)	86.5 L x 47.25 W x 26.25 H
Depth to overflow drain (in)	17.75
Product weight (lb)	331
Water capacity (gallons)	135
Shape	Rectangular
Product material	DurateX™
Installation type	Built in
Warranty	10 Year Limited Warranty on the bathtub shell

Other parameters

Collection name	Fusion
Sku	Fusion-Lineare-SpaBath
Country where manufactured	EU
Product color	White
Surface finish	High Gloss
Drain placement	Center
Assembly required	No
Type of massage	Hydromassage

Interior parameters

Interior depth (in)	17.75
Interior length top (in)	66.25
Interior width bottom (in)	26.75
Interior width top (in)	26.75

Package parameters

Shipping weight (lb)	496
Number of boxes	1

Electrical power requirements

Electrical standards	240V/60Hz
Required electrical voltage	240V/60Hz
Electrical circuit breakers	20A GFCI Protected
Circuits required	1 Single Circuit

Installed equipment

Hydrotherapy pumps	1
Circulation pump	Yes
Heater	Yes
Bluetooth audio system	No
Stereo speakers	No
Subwoofer	No
